2FT Single Tube Light Fixture With Emergency Backup 6000K , Microwave Sensor LED Light
Our 2FT Single Tube Light Fixture with Emergency Backup offers a reliable, energy-efficient solution for indoor lighting applications. Designed with a high-strength steel body, this fixture is built to last and provides consistent, bright 6000K illumination. It integrates a T8 LED tube and advanced microwave sensor technology for dimming and occupancy detection, making it ideal for offices, corridors, and parking lots. In case of power outages, the emergency backup feature ensures uninterrupted lighting, enhancing safety and convenience.
Key Features:
Emergency Backup Function: This fixture includes a smart LiFePO4 battery that provides over 3 hours of emergency lighting at 3W, offering peace of mind during power failures.
Microwave Sensor Dimming: The built-in 5.8G microwave sensor provides precise control with 100%/20%/OFF settings, saving energy by dimming or turning off when no motion is detected.
Efficient LED Technology: Powered by a high-quality SMD2835 LED chip, this fixture delivers 100-120lm/w luminous efficacy, providing bright and energy-efficient illumination at 6000K.
Durable Construction: Built with a 0.5mm thick steel housing and a polycarbonate diffuser, it offers long-lasting performance and an IP20 protection rating, making it suitable for various indoor applications.
Easy Installation and Maintenance: The innovative sliding design allows for quick installation and easy maintenance, reducing downtime and simplifying upkeep for large-scale installations.
T8 LED Tube Light Fixture(J2-series) Specification Parameter Data:
| Model | Input voltage | Watt | Sensor dimming standby | Emergency |
| ZL-JTBLP9-2FT-CN | AC110V or 230V | 1*9w | x | x |
| ZL-JTBLP18-4FT-CN | AC110V or 230V | 1*18w | x | x |
| ZL-JTBLP18-2FT-CN | AC110V or 230V | 2*9w | x | x |
| ZL-JTBLP36-4FT-CN | AC110V or 230V | 2*18w | x | x |
| ZL-JTBLP9-2FT-CS | AC110V or 230V | 1*9w | 100% / 20% /OFF | x |
| ZL-JTBLP18-4FT-CS | AC110V or 230V | 1*18w | 100% / 20% /OFF | x |
| ZL-JTBLP18-2FT-CS | AC110V or 230V | 2*9w | | x |
| ZL-JTBLP36-4FT-CS | AC110V or 230V | 2*18w | | x |
| ZL-JTBLP9-2FT-CE | AC110V or 230V | 1*9w | x | >3hrs@3.6W |
| ZL-JTBLP18-4FT-CE | AC110V or 230V | 1*18w | x | >3hrs@3.6W |
| ZL-JTBLP18-2FT-CE | AC110V or 230V | 2*9w | x | >3hrs@3.6W |
| ZL-JTBLP36-4FT-CE | AC110V or 230V | 2*18w | x | >3hrs@3.6W |
| ZL-JTBLP9-2FT-CES | AC110V or 230V | 1*9w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-JTBLP18-4FT-CES | AC110V or 230V | 1*18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-JTBLP18-2FT-CES | AC110V or 230V | 2*9w | | >3hrs@3.6W |
| ZL-JTBLP36-4FT-CES | AC110V or 230V | 2*18w | | >3hrs@3.6W |
| Note: x -No this function |
T8 LED Tube Light Fixture(J2-series) Specification Details:
| Model | ZL-JTBLP9-2FT | ZL-JTBLP18-2FT | ZL-JTBLP18-4FT | ZL-JTBLP36-4FT |
| Rated Power (Led tube) | 1x9W | 2x9W | 1x18W | 2x18W |
| Install | Surface Mount/Suspended/Linkable |
| Protection Rating | IP20 |
| Housing | Steel with Coating |
| Optics | Polycarbonate Milky Diffuser |
| Connection Type | Terminal Block or Linkable |
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) |
| Warranty | 3 Years(battery for 1 year) |
| Dimming Option | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
| Emergency Option | 3 Hours+ @3W LiFePO4 Battery |
| PHOTOMETRIC |
| Luminous Efficacy | 100-120lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
| ELECTRICAL |
| Input power Supply | AC200-240V, 50/60Hz |
| Power Factor | > 0.9 |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Dimensions | 650*113*96mm | 650*113*96mm | 1260*113*96mm | 1260*113*96mm |

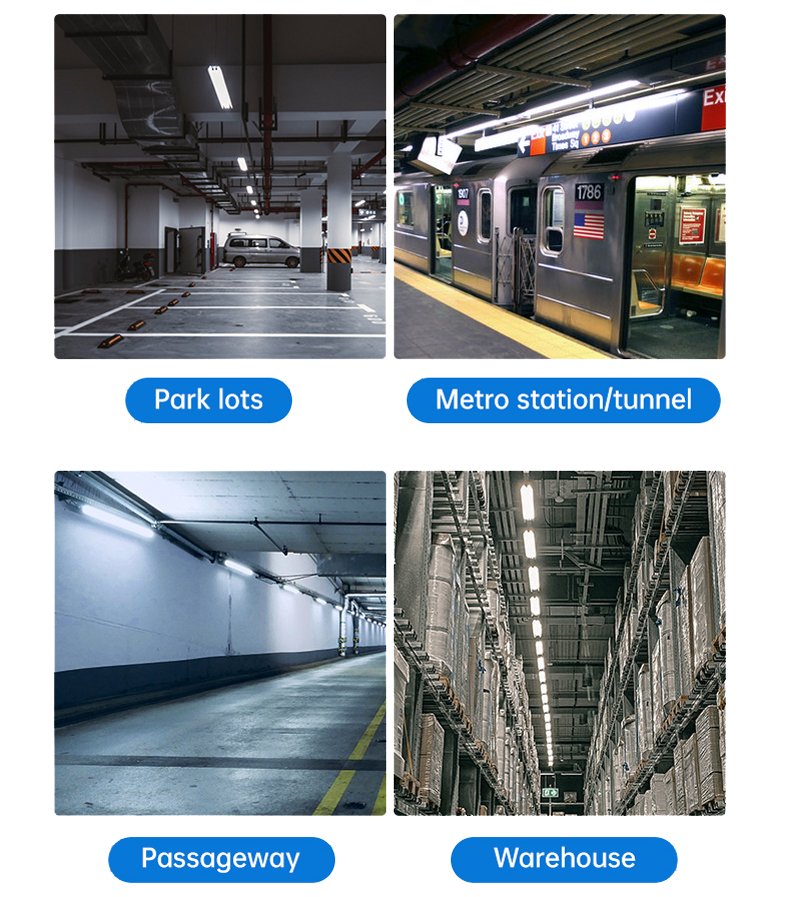

T8 LED Tube Light Fixture Product Application
T8 LED Tube Light Fixture Maintenance:

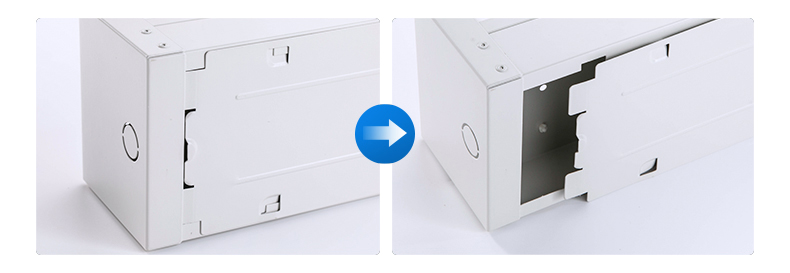

Removable Back Plate
 | Quick Installation
 |

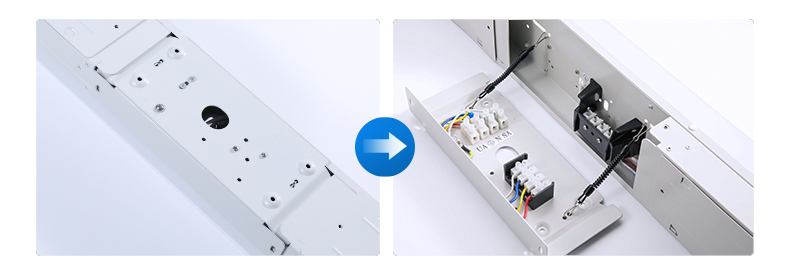

Huge terminal block for holding multiple wires
 | Plug and play connection
 |

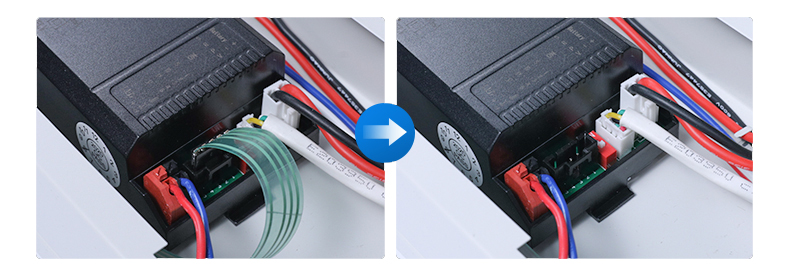

Special housing for quick replace battery
 | |

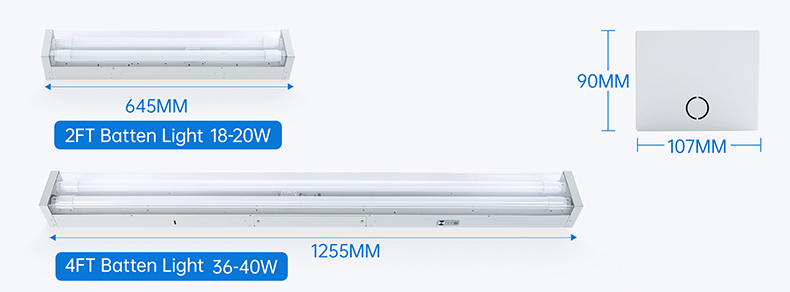

T8 LED Tube Light Fixture Size:
