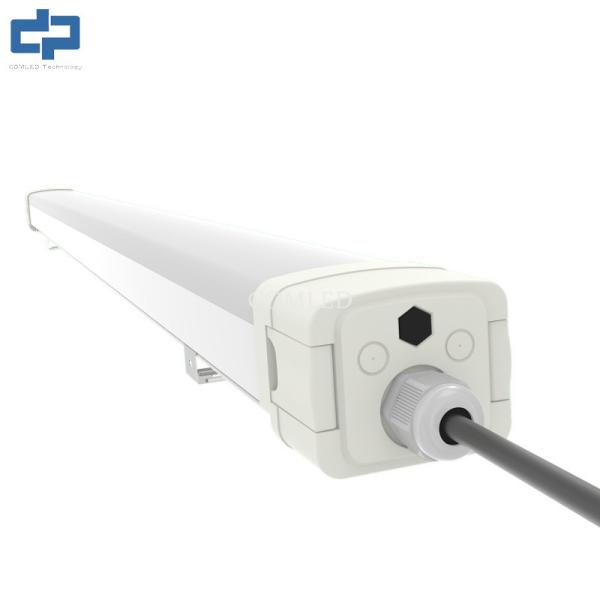

5FT LED Linear Light Fixture , Hazardous Location Vapor Tight Light Fixture 220-240
5FT LED Linear Light Fixture is engineered for hazardous environments where durability and performance are critical. This vapor-tight light fixture is IP66 and IK10 rated, making it ideal for locations exposed to water, dust, and high impact. It features a high-transmittance polycarbonate diffuser and aluminum heat sink, ensuring long-term reliability and excellent light distribution. Designed for areas such as underground parking lots, workshops, and basements, this fixture combines high brightness and efficiency with a sleek, robust build.
5FT LED Linear Light Fixture Features:
Extreme Durability: Rated IP66 for water resistance and IK10 for impact protection, making it suitable for tough environments.
High Luminous Efficiency: Equipped with a 220lm/W LED chip, it offers brilliant illumination, ensuring energy efficiency without compromising on brightness.
Tool-free Installation: The fixture features an openable end cap with a quick-connect terminal block, simplifying installation and reducing labor costs.
Glare-free Light: The milky PC diffuser delivers soft, uniform light distribution with no glare, providing a comfortable environment.
Versatile Mounting Options: Surface-mounted, hanging, and linkable installation options are available to meet various project needs.
LED Linear Light Fixture(L-series) Parameter Data:
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-LSBLP18-2FT-CN | AC100V-240V | 18w | x | x |
| ZL-LSBLP36-4FT-CN | AC100V-240V | 36w | x | x |
| ZL-LSBLP44-5FT-CN | AC100V-240V | 44w | x | x |
| ZL-LSBLP18-2FT-DS | AC100V-240V | 18w | 100% / 20% /OFF | x |
| ZL-LSBLP36-4FT-DS | AC100V-240V | 36w | 100% / 20% /OFF | x |
| ZL-LSBLP44-5FT-DS | AC100V-240V | 44w | 100% / 20% /OFF | x |
| Note: x -No this function |
LED Linear Light Fixture(L-series) Specification:
| LUMINAIRE INFORMATION |
| Model | ZL-LSBLP18-2FT | ZL-LSBLP36-4FT | ZL-LSBLP44-5FT |
| Rated Power | 18W | 36W | 44W |
| Install | Surface Mount/Suspended/Linkable |
| Protection Rating | IP66 IK10 |
| Housing | PC+AL |
| Optics | PC Milky Diffuser |
| Connection Type | Quick Terminal Block(Push) or linkabke |
| Operating Temperature | -20℃ to 40℃ |
| Warranty | 3 Years |
| Dimming Option | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
| PHOTOMETRIC |
| Luminous Efficacy | 110-130lm/W |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
| ELECTRICAL |
| Input power Supply | AC220-240V/50-60HZ |
| Power Factor | 0.9 |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class II |
| Package Dimensions | 665*80*70mm | 1265*80*70mm | 1565*80*70mm |

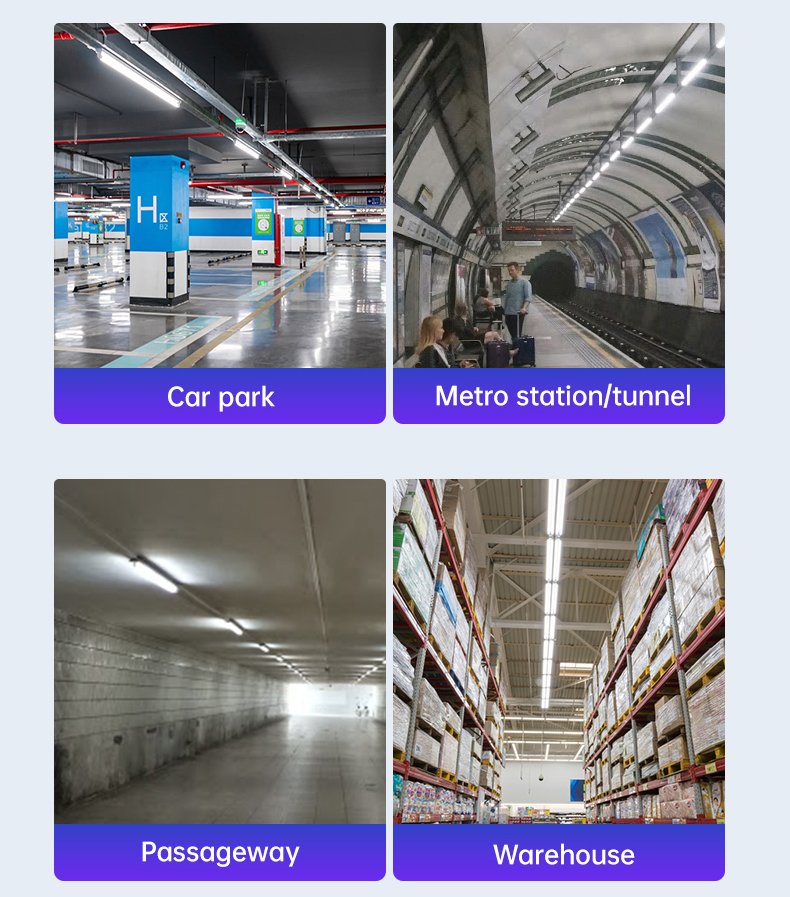

Product Application
